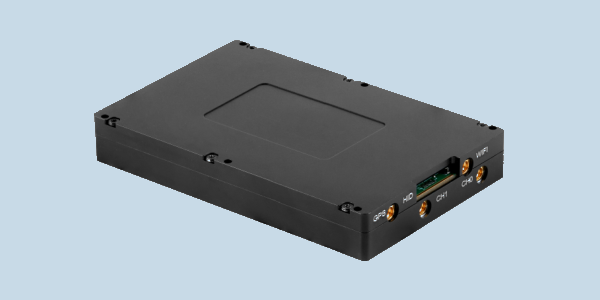

RM-2100-42 — Multiband OEM Mesh Rider Radio

Overview

The RM-2100-42 Multiband OEM Mesh Rider Radio by Doodle Labs delivers long-range, high-throughput mesh networking for tactical communication systems. Operating across L-band and S-band frequencies, this OEM module is designed for integration into external chassis to support secure voice, video, and data networks.

Technical Summary

• Frequency Ranges: 1350-1390 MHz (L-band) and 2200-2510 MHz (S-band)
• Modulation: Interference-resistant COFDM
• Encryption: FIPS Certified AES 256- and 128-bit
• Max RF Output Power: 1.0 W (30 dBm)
• Connectors: MMCX (RF) and JST-GH locking connectors

Operational Use Cases

This mesh radio is utilized for secure tactical communications, dynamic command and control (C2) operations, and optimized 4K video streaming. It also features a Wi-Fi bridge capability to seamlessly connect smartphones and tablets to the established Mesh Rider network.

Deployment Environments

Designed for highly reliable mobile mesh applications, this module is suited for tactical platforms. Because it is an OEM module, it requires embedding within a suitable external chassis for protection against specific environmental conditions.

Performance Metrics

• Operating Range: >100 km
• Data Throughput: Up to 100 Mbps
• Latency: Ultra-Reliable Low Latency Channel (URLLC) for Command and Control

Setup & Portability

The compact OEM design requires integration into a host system or external enclosure. Hardware connections are secured using ruggedized MMCX and JST-GH locking connectors to ensure stability in mobile environments.

Compatibility

The module functions as a node within a Doodle Labs Mesh Rider network. It inherently supports bridging to standard commercial tablets and smartphones via Wi-Fi.

FAQs

• What are the primary applications for this multiband OEM radio? It provides secure, long-range mesh networking, command and control data links, and high-throughput video streaming for tactical platforms.
• How does antenna selection impact tactical radio security? Omnidirectional antennas provide broad coverage but can expose tactical transmissions to interception. Pairing a radio with a directional antenna reduces this exposure, though it may require different mounting configurations.
• What is required to integrate this OEM mesh radio module? It must be embedded into an external chassis suitable for the deployment environment. Verify compatibility with its MMCX RF and JST-GH locking connectors during system design.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A brief technical overview showing the module's form factor, the MMCX and JST-GH connection points, and an example of it bridging a smartphone to a mesh network would be beneficial.
