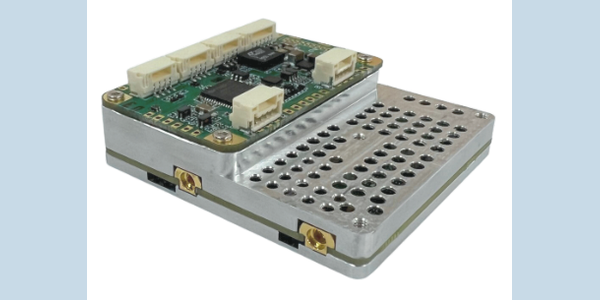

RM-2450-22M3 — Mini OEM Mesh Rider Radio

Overview

The RM-2450-22M3 Mini OEM Mesh Rider Radio by Doodle Labs is an advanced MANET router designed for secure, long-range mobile communications in the 2400-2482 MHz ISM band. It leverages patented Mesh Rider® technology to deliver high throughput and reliable connectivity for tactical and industrial applications.

Technical Summary

• Frequency Band: 2400-2482 MHz (ISM)
• Throughput: Up to 100 Mbps
• Security: AES 256- and 128-bit encryption (FIPS 140-3 Optional)
• Environmental Rating: MIL-STD-810H (shock and vibration)
• Operating Temperature: -40°C to +85°C

Operational Use Cases

• Secure Command and Control (C2) data links
• Optimized 4K video streaming
• Tactical mobile and handheld communications

Deployment Environments

Built for rigorous tactical and industrial environments. The system operates reliably in extreme temperatures (-40°C to +85°C) and utilizes interference-resistant COFDM to maintain robust link quality in challenging non-line-of-sight (NLOS) and multipath conditions.

Performance Metrics

• Range: Field-tested exceeding 100 km
• Data Rate: Up to 100 Mbps throughput
• Modulation: Interference-resistant COFDM
• Latency: Ultra-Reliable Low Latency Channel (URLLC)

Setup & Portability

The radio features an extremely small size, weight, and power (SWaP) footprint optimized for mobile integration. It requires minimal integration effort, connecting via USB and a power supply, making it ideal for airborne, ground vehicle, handheld, and manpack platforms.

Compatibility

Integrates into host systems using standard USB and a compatible power supply. Consult the manufacturer's datasheet for exact voltage and interface pinout specifications.

FAQs

• What types of data can this MANET router handle simultaneously? It handles optimized 4K video streaming alongside low latency Command and Control data utilizing an Ultra-Reliable Low Latency Channel (URLLC).
• How does COFDM modulation improve connectivity? COFDM is highly resistant to interference and multipath fading. This provides robust link quality even in challenging non-line-of-sight (NLOS) environments.
• What is required to integrate this OEM radio module? The unit is optimized for minimal integration effort, requiring only a USB connection and an appropriate power supply to operate within mobile platforms.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
