RM-5700-21O3 — Multiband OEM Mesh Rider Radio

Overview

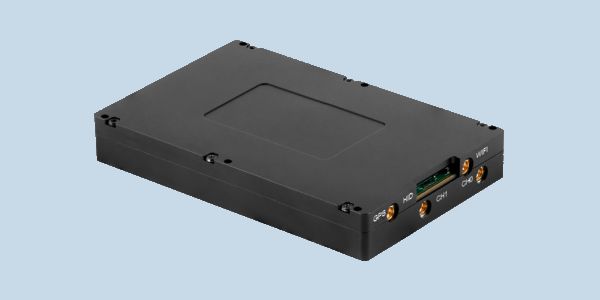

The Doodle Labs RM-5700-21O3 is a Multiband OEM Mesh Rider Radio designed for integration into external chassis. Operating in the 5650-5755 MHz range, it provides a self-healing, multi-frequency mobile mesh network tailored for the Japanese Unmanned Aircraft band.

Technical Summary

Operating in the C-band (5.7 GHz), this OEM module features multipath and Non-Line-of-Sight (NrLOS) MIMO performance. It utilizes compact, rugged MMCX and JST-GH locking connectors for hardware integration and supports FIPS 140-3 certified 128-bit and 256-bit AES encryption.

Operational Use Cases

Ideal for airborne and tactical communication platforms, this radio establishes secure, long-range data links. It is designed to stream voice, video, and data over an encrypted network, functioning as a node that can bridge tablets and smartphones via Wi-Fi.

Deployment Environments

Engineered for Unmanned Aircraft Vehicles (UAVs) operating within Japanese frequency allocations. As an OEM module, it is intended for embedded use within an external chassis to provide reliable connectivity in dynamic, multipath tactical environments.

Performance Metrics

• Field-tested range exceeding 100 km
• Data throughput up to 100 Mbps
• Ultra-Reliable Low Latency Channel (URLLC) for Command and Control (C&C)

Setup & Portability

As an OEM board, the module requires integration into a host enclosure. Connections are facilitated through locking MMCX and JST-GH connectors designed to maintain secure links during airborne movement and tactical operations.

Compatibility

The radio interoperates with consumer tablets and smartphones by utilizing Wi-Fi to bridge them onto the broader Mesh Rider network.

FAQs

• What frequency range does this mesh radio support? The module operates in the 5650-5755 MHz range. This specific C-band allocation corresponds to the Japanese Unmanned Aircraft band for airborne data links.
• What is the function of the Ultra-Reliable Low Latency Channel (URLLC)? URLLC designates a specific network pathway prioritized for low-latency transmission. This feature supports time-sensitive Command and Control (C&C) signaling over the mesh network.
• How is this OEM module integrated into host systems? The bare board requires installation within an external host chassis for physical protection. Integrators must verify compatibility with its onboard MMCX and JST-GH locking connectors for RF and data routing.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).

Video Notes

A video demonstrating the OEM module's integration into an external UAV chassis and a software demonstration of the mesh network's self-healing capabilities would be beneficial.
