RM4 2G ALE Software Option — 2nd Generation Automatic Link Establishment Software

Overview

The RM4 2G ALE is a software option that embeds a 2nd Generation Automatic Link Establishment (ALE) Controller into the RapidM RM4 unit. Activated via a license key, it enables fully automatic, operator-free linking with other HF stations by automatically navigating variable HF propagation conditions across multiple frequencies.

Technical Summary

• Military Standards: Compliant with MIL-STD-188-141B (Appendix A and B) and FED-STD 1045/1049
• Channel Scanning: Up to 5 channels per second
• Optimization: Link Quality Analysis (LQA) for continuous best-score channel selection
• Security: Supports MIL-STD-188-141B Appendix B Linking Protection
• Synchronization: Requires accurate UTC time via GPS interface on the RM4 unit

Operational Use Cases

• Facilitating individual, group, and net HF calls without operator intervention
• Automating network sounding and channel scanning
• Upgrading non-ALE capable mobile HF radios by acting as an external ALE controller
• Securing communication networks using synchronized linking protection

Deployment Environments

Designed for integration with the RapidM RM4 hardware in mobile and tactical HF communication environments where variable propagation requires automated channel management.

Performance Metrics

• Scan Rate: Up to 5 channels per second
• Automation: Fully automatic linking with no operator intervention required

Setup & Portability

The ALE controller is activated on the host RM4 unit via a software license key. For secure linking protection, operators must connect a GPS unit to the RM4's dedicated interface to provide accurate UTC time to the network.

Compatibility

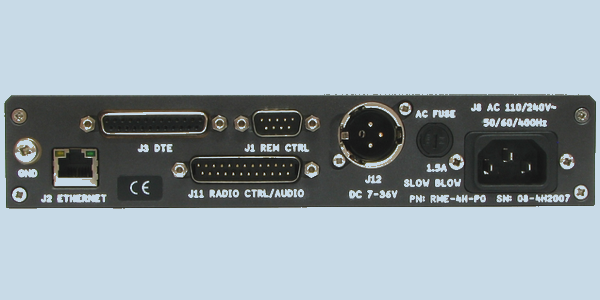

• Hardware: RapidM RM4 unit
• Transceivers: Compatible with a wide range of third-party mobile HF radios
• Time Servers: Requires a GPS unit connection to the RM4 for Linking Protection (UTC time)

FAQs

• What is the primary function of 2nd Generation Automatic Link Establishment (ALE)? ALE automates the selection of optimal frequencies and establishes connections between stations without manual intervention. Verify that the paired transceivers support remote control and rapid frequency switching to fully utilize the protocol.
• How does Link Quality Analysis (LQA) improve network reliability? LQA continuously evaluates available channels by monitoring signals from other network stations to determine the best connection score. Confirm that your network plan allocates sufficient time for sounding and scanning operations.
• What is required to implement Appendix B Linking Protection? Linking protection protocols depend on precise network synchronization to secure transmissions. Verify that the host hardware interfaces with a valid GPS unit to supply accurate UTC time across all secure stations.
