Spectrum Core 10-3000 MHz J0SSAM31

Overview

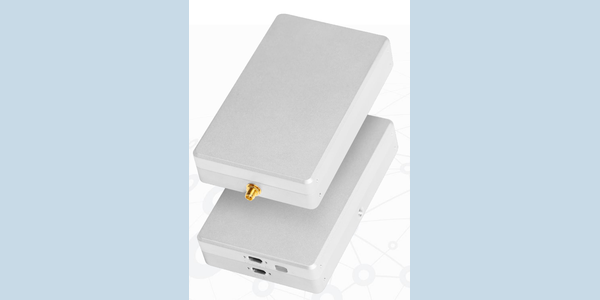

The Spectrum Core J0SSAM31 is a spectrum analyzer development kit designed for seamless integration into third-party systems. It provides direct, OS-agnostic control and data acquisition through a virtual COM port via a USB interface, eliminating the need for custom drivers or intermediate software. The unit delivers essential spectrum analysis functions like frequency sweeps, power-in-band measurements, and zero-span mode in a compact, lightweight form factor optimized for embedded applications.

Technical Summary

The J0SSAM31 provides core spectrum analysis capabilities in a package built for integration. It covers a wide frequency range from 10 MHz to 3000 MHz and features direct digital control over its measurement parameters via an open API. The use of a USB virtual COM port interface ensures broad compatibility with custom control systems, making it a flexible solution for adding RF measurement capabilities to a variety of platforms.

Operational Use Cases

• Embedding spectrum analysis capabilities into larger electronic systems.
• Developing custom RF monitoring and measurement tools for specific applications.
• Automated testing and verification in production environments.
• Integration into unmanned platforms for signals intelligence tasks.

Deployment Environments

Housed in a rugged, IP54-rated enclosure, the Spectrum Core J0SSAM31 is protected against dust ingress and water spray from any direction. Its compact, lightweight design and adaptable mounting options make it suitable for deployment within larger systems, in laboratory testbeds, or on mobile platforms where space and weight are critical considerations.

Performance Metrics

Frequency Range	10 MHz – 3000 MHz
Resolution Bandwidth (RBW)	10 kHz to 300 kHz (selectable)
Video Bandwidth (VBW)	1 kHz to 30 kHz (selectable)
DANL (typical, normalized to 1Hz)	< -165 dBm/Hz (with LNA on)
LNA	Switchable integrated low noise amplifier
RF Input	50 Ω SMA Female
Input VSWR	< 1.5
Enclosure Rating	IP54

Setup & Portability

The J0SSAM31 is designed for rapid and straightforward setup. It is powered and controlled through a single USB Type-C connector, which presents as a virtual COM port to the host system. This approach allows for direct communication using a simple, open API without requiring specialized drivers. Its small form factor and light weight make it highly portable and easy to mount within a target system.

Compatibility

The Spectrum Core J0SSAM31 is engineered for broad system compatibility. Its primary control interface is a virtual COM port over USB, making it operating system agnostic. An open API allows developers to write custom control software on any platform that can communicate with a serial port. The RF input uses a standard 50 Ω SMA female connector, ensuring compatibility with a wide range of antennas, cables, and RF components.

FAQs

How is the Spectrum Core J0SSAM31 controlled?

The reviewed product data indicates that the device is controlled via a virtual COM port using a USB interface. It features an open API for direct access to measurement functions, allowing for OS-agnostic integration with custom software.

Can this device be used to measure RF field strength?

In general, a spectrum analyzer can be used to measure RF field strength or power density when connected to a receiving antenna via coaxial cable. This process typically involves accounting for antenna factor, cable loss, and other system variables to convert the measured power (in dBm) to field strength (in V/m) or power density (in W/m²). For specific procedures and conversion formulas, consulting technical references on electromagnetic field measurements is recommended. The reviewed product data for the J0SSAM31 does not list an included antenna or specific field strength measurement software.
