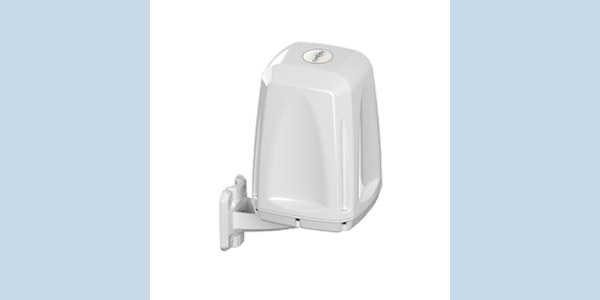

XTND-C030 — XTND-OMNI Base Station

Overview

The XTND-C030 is a rugged IP-67 base station delivering enhanced long-range performance through an integrated Doodle Labs Mesh Rider Mini OEM 2x2 MIMO Radio. It combines power and Fast Ethernet connectivity into a single connection, providing robust omnidirectional coverage for critical tactical and autonomous communications.

Technical Summary

• Frequency Bands: UHF (902-928 MHz), L-Band, and S-Band (1625-2500 MHz)
• Gain: Up to 2 dBi
• Polarization: Dual (internal cross-polarized antennas)
• Interface: IP-67 rated RJ-45 connector (100 Mbps Fast Ethernet)
• Power Supply: PoE (802.3 af/at/bt)

Operational Use Cases

• Robotic and autonomous system communications
• Resilient private wireless MANET networking
• Tactical data links

Deployment Environments

Encased in a rugged IP-67 enclosure, this base station is designed to withstand harsh outdoor elements. It is intended for fixed site installations, temporary mast structures, and maritime platform environments.

Performance Metrics

• Omnidirectional high-throughput wireless networking
• Ultra-reliable low-latency control channels
• Integrated 2x2 MIMO architecture
• Supports 100 Mbps Fast Ethernet data transfer

Setup & Portability

Installation requires only a single IP-67 rated RJ-45 connection, which provides both Fast Ethernet and power via standard PoE. The enclosure is designed for convenient mast or maritime mounting.

Compatibility

• Integrated Hardware: Doodle Labs Mesh Rider Mini OEM 2x2 MIMO Radio
• Power Standard: IEEE 802.3 af/at/bt Power over Ethernet (PoE)

FAQs

• How does a cross-polarized antenna support MIMO systems? Cross-polarization utilizes two distinct electric-field orientations to transmit separate data streams. This technique maximizes multipath efficiency and throughput in 2x2 MIMO networks.
• What power standards are required for this type of base station? Verify that your network infrastructure provides IEEE 802.3 af, at, or bt standard Power over Ethernet. A single RJ-45 connection supplies both the necessary power and network data.
• How should the unit be mounted for fixed site or maritime use? Consult the product datasheet to verify the specific mechanical interfaces and hardware requirements for mast installations. Proper mounting maintains environmental sealing and optimal signal distribution.
• Problems we solve: where do we start with incomplete requirements? An incomplete specification can make product selection difficult. Start by sharing the task, operating environment and known constraints with Cyntony so the team can help define what to verify and which options are worth discussing (Our process).
• Outcomes we deliver: what comes from working through the requirements? The practical outcome is a requirements-led set of product options to evaluate with Cyntony. Confirm performance, compatibility and any service scope for your configuration before selection (Our process).
