GP-CLOUD Classification/Localization SOFTWARE

STAY AHEAD OF GNSS THREATS

GP-Cloud Map Monitor

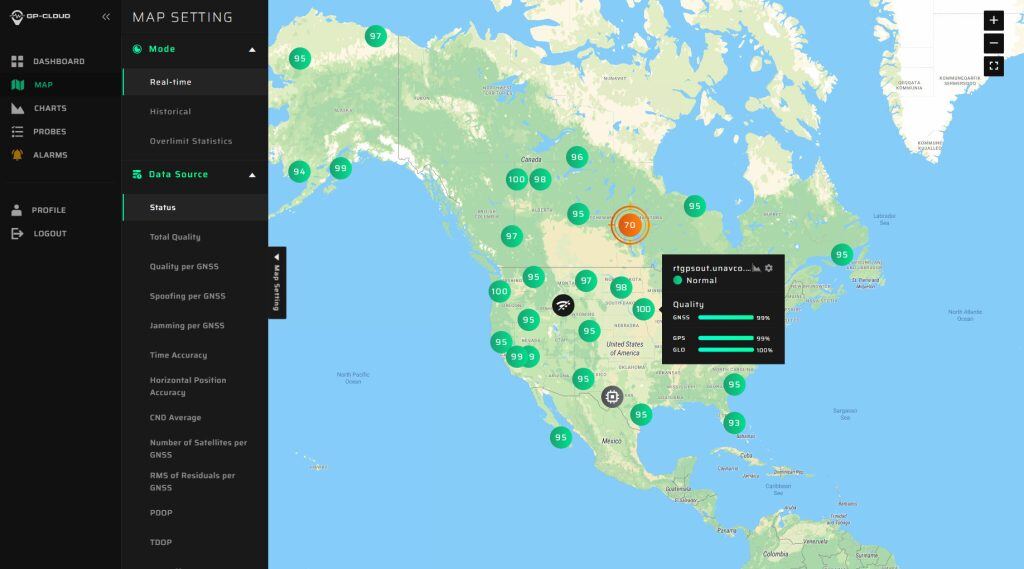

GP-Cloud Map Interface

Enjoy true, real-time GNSS signal quality analysis/spoofing/jamming/ anomaly detection, RF spectrum and PPS accuracy monitoring, all in one user interface. Can run on your private network or online in the cloud.  Supports GP-Probe RTCM@NTRIP, Septentrio SBF, U-blox UBX, and more.



DETECT AND INVESTIGATE SOPHISTICATED GNSS SPOOFING ATTACKS

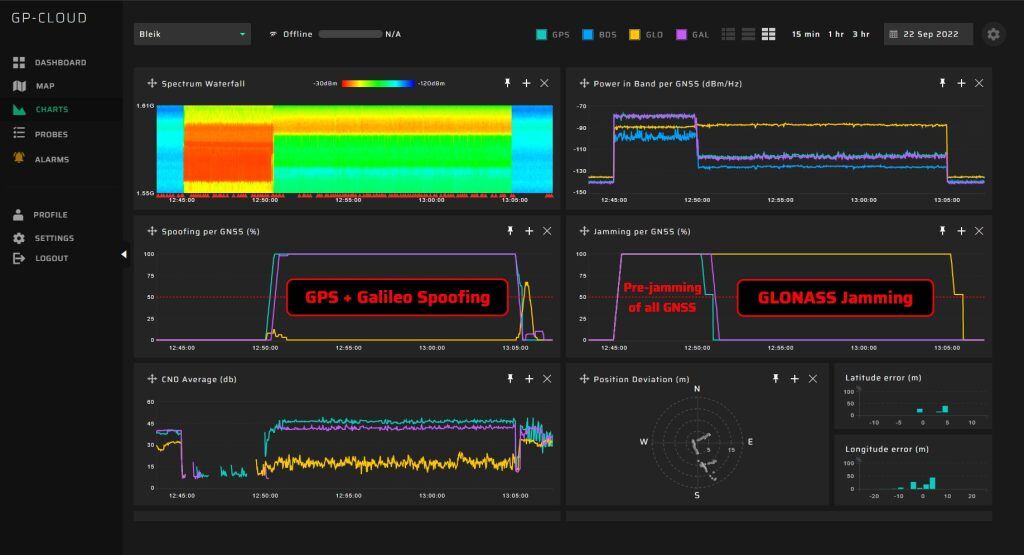

GP-Cloud Detect and Investigate Sophisticated GNSS Spoofing Attacks

GP-Cloud GNSS Detection

With the 3-channel GP-Probe TGE2 device and advanced algorithms, GP-Cloud provides real-time protection against any type of deliberate GNSS spoofing attack.



EXPLORE GNSS INTERFERENCE MODULATION FEATURES

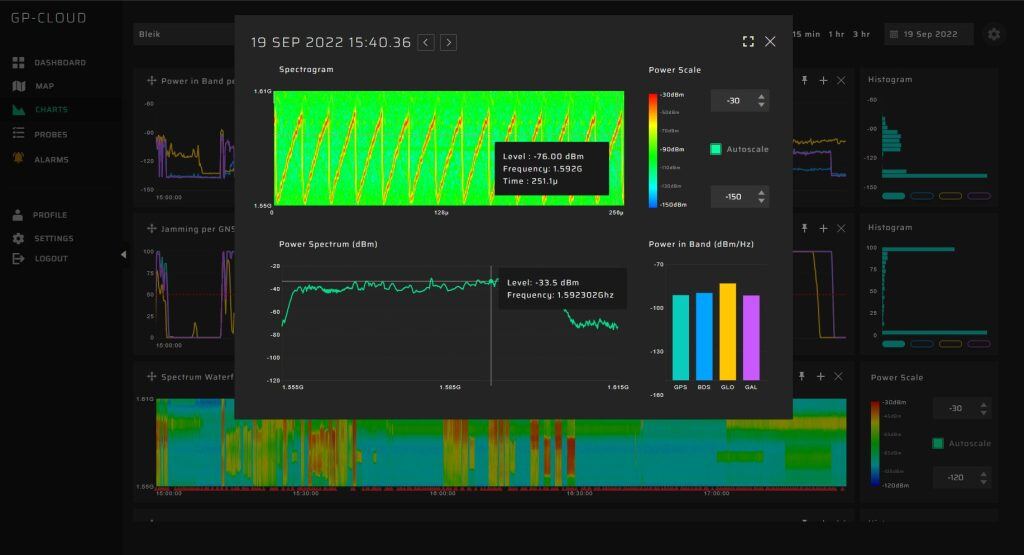

GP-Cloud GNSS-jamming RF power spectrum a spectrogram

GP-Probe TGE2 is equipped with an FPGA-powered RF signal analyzer with 60MHz bandwidth. It helps to identify the interference and develop effective countermeasures. Moreover, GP-Probe sends raw IQ data to the cloud to localize the interference using TDOA.



GP-CLOUD DASHBOARD: REAL-TIME PROBE STATUS AND EVENT STATISTICS

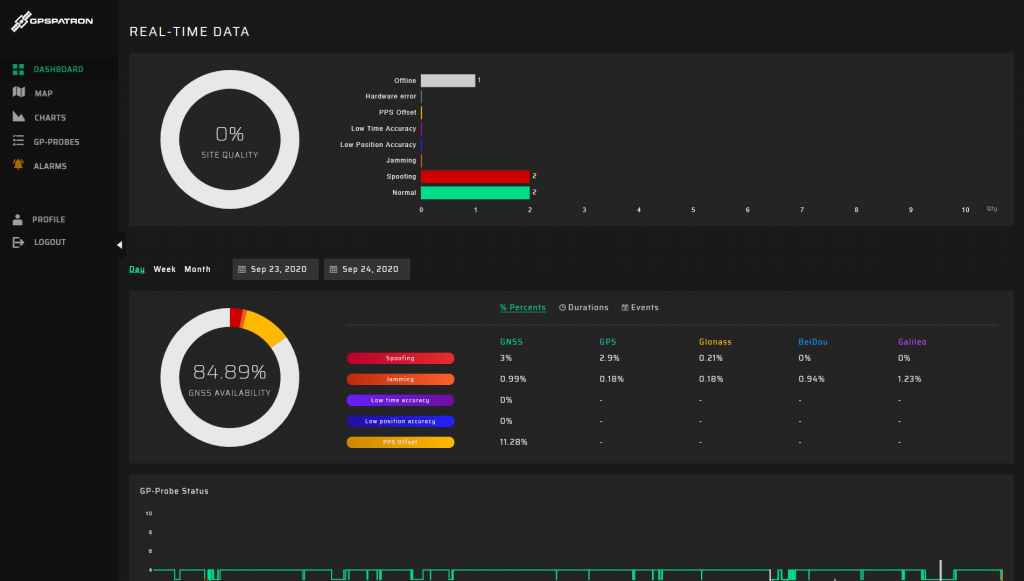

GP-Cloud-Dashboard-with-GNSS-Jamming-and-Spoofing-1024x581

GP-Cloud Real-Time Detection

Monitor real-time status of connected probes, track site quality, and analyze recorded events including GNSS availability, number of events, duration, and which constellations were more effected.



ENSURE RELIABLE TIME SYNCHRONIZATION WITH GP-PROBE AND GP-CLOUD

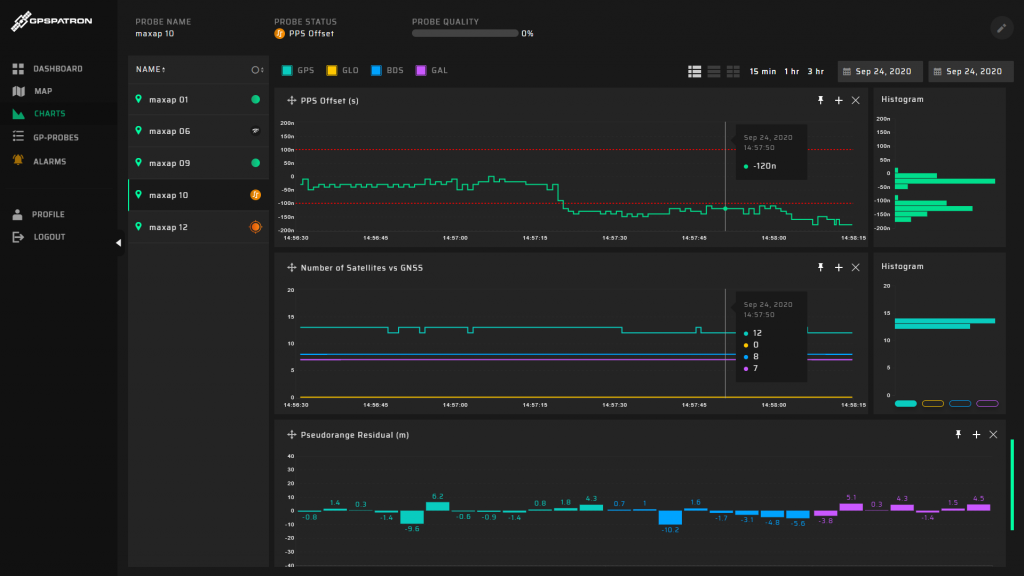

GP-Cloud Charts with PPS Error

GP-Cloud Time Synchronization

GP-Probe measures the phase deviation between the internal and external PPS to monitor the status of a time server, providing reliable and accurate clock synchronization for critical infrastructure.



GP-CLOUD KEEPS YOU INFORMED OF ALL GNSS INCIDENTS

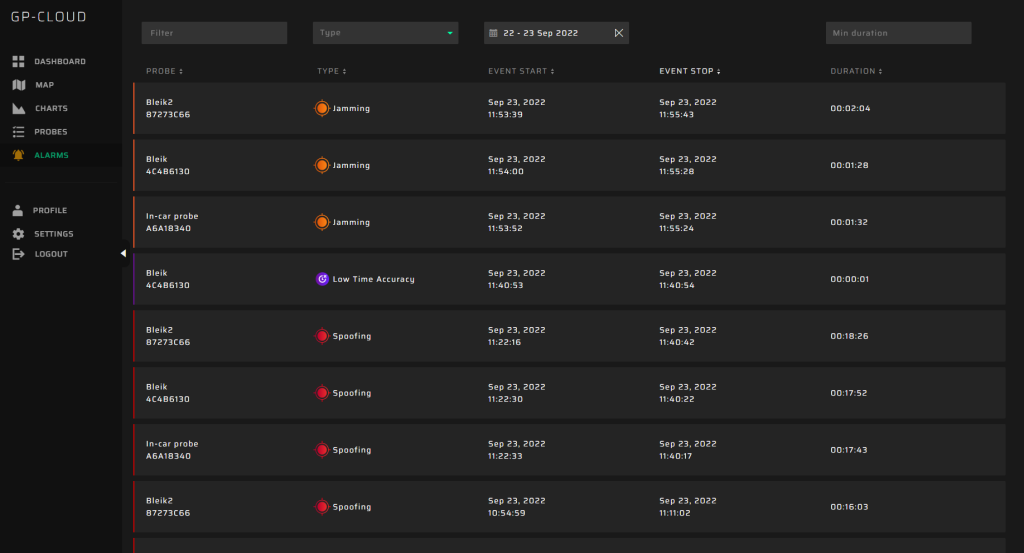

GP-Cloud-All-Events-List-1024x553

GP-Cloud GNSS Incident Interface

Never miss a critical GNSS event again! GP-Cloud logs all detected events such as spoofing, jamming, anomalies and more, and sends instant notifications to keep you informed and in control.



DETAILED GNSS EVENT OVERVIEW

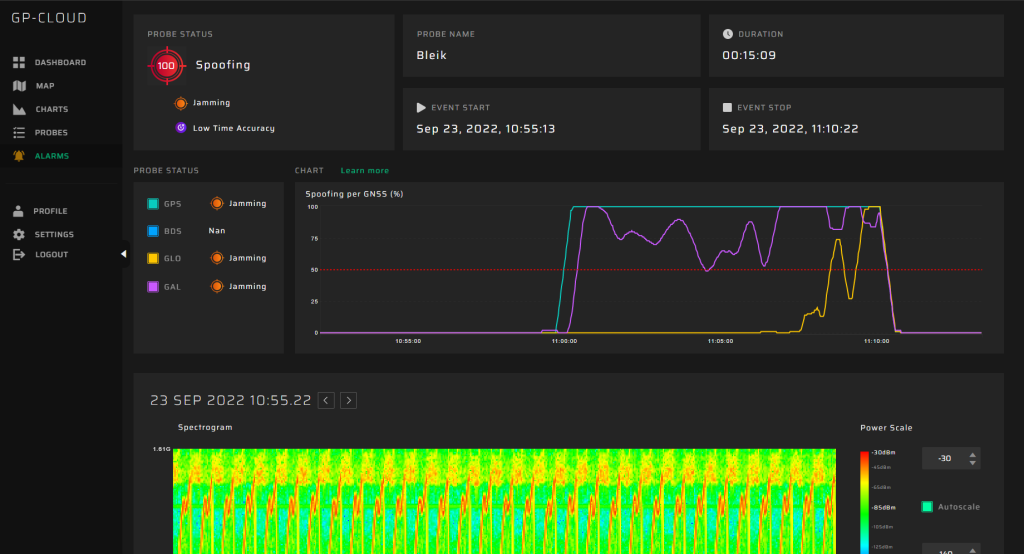

GP-Cloud-GNSS-Spoofing-Event-Status-1024x554

GP-Cloud Detailed GNSS Event Overview

Dive into detailed information about the recorded incident: start/stop times, GNSS statuses, data charts, RF spectrum info, position on map. You can even leave comments about the event for your colleagues.



KEY FEATURES

GP-Cloud is specifically engineered to process data from GP-Probe, enabling real-time interference monitoring of GNSS-dependent critical infrastructure. It allows for the connectivity of RTK base stations via RTCM@NTRIP and other GNSS receivers through NMEA@NTRIP, providing instant notifications of detected anomalies. Users can conduct detailed post-analysis of recorded incidents to develop effective countermeasures against GNSS spoofing and jamming.



GNSS Anomalies Detection

The app detects anomalies in raw GNSS data and provides real-time notifications to the user. It supports 1Hz data from a stationary GNSS receiver using protocols such as RTCM, NMEA, and Septentrio SBF.



Interference Classification

Integrated with the GP-Probe, GP-Cloud delivers high-precision detection and classification of intricate spoofing attacks. Assess its performance with our detailed JammerTest2024 report.



Enterprise-grade application

GPSPATRON team has applied the most advanced software tools for real-time operation under high-load. GP-Cloud is ready for data processing on a nation-wide scale.



GNSS Quality Monitoring

GP-Cloud estimates time/position accuracy and calculates GNSS signal quality metrics for each constellation individually.



Data Logging

The GP-Cloud stores in the database dozens of parameters of all visible satellites: pseudorange, carrier phase, Doppler, residual, S/N ratio, DOPs, satellite position, accuracy, quality, spoofing/jamming probability, etc.



API

Powerful API with documentation in Swagger allows you to integrate the solution in an existing infrastructure.





SPECIFICATIONS



Supported Hardware

  • GP-Probe
  • RTCM@NTRIP
  • NMEA@NTRIP
  • Septentrio GNSS receiver via SBF@NTRIP



Supported GNSS

  • GPS
  • GLONASS
  • BeiDou
  • Galileo



Detectable Types of Spoofing Attacks

  • Asynchronous spoofing
  • Synchronous spoofing
  • Synchronous multiple-TX spoofing
  • Spoofing in combination with jamming



User Interface

  • Dashboard
  • Map
  • Charts with histograms
  • Alarm list
  • GP-Probe list
  • User profile



Chart Types

  • Total Quality
  • Quality per GNSS
  • Spoofing per GNSS (available only for TGE2)
  • Jamming per GNSS (available only for TGE2)
  • Anomaly per GNSS
  • Horizontal Position Accuracy per GNSS
  • Position Deviation Map
  • CNO Average
  • CNO per Satellites
  • Residuals per Satellites
  • Number of satellites per GNSS
  • Satellite Heat Map
  • PDOP
  • TDOP
  • RMS of Residuals per GNSS
  • Spectrum Waterfall
  • Spectrogram (available only for TGE2)
  • Power in Band per GNSS (available only for TGE2)
  • Peak Power
  • PPS Offset

Detectable Event Types



GP-Probe TGE2 GP-Probe DIN L1 Septentrio SBF RTCM NMEA
Spoofing Interference Spoofing Anomaly Anomaly
Jamming Anomaly Interference Low Position Accuracy Low Position Accuracy
Anomaly Low Position Accuracy Anomaly Offline Offline
Low Position Accuracy Offline Low Position Accuracy
Offline Hardware Error Offline
Hardware Error   Hardware Error



Supported RTCM 3.0 Messages



Message Type Message Description
1002 Extended L1-Only GPS RTK Observables
1004 Extended L1&L2 GPS RTK Observables
1005 Stationary RTK Reference Station ARP
1006 Stationary RTK Reference Station ARP with Antenna Height
1010 Extended L1-Only GLONASS RTK Observables
1012 Extended L1&L2 GLONASS RTK Observables
1074 MSM4 – Full GPS Pseudoranges and PhaseRanges plus CNR
1075 MSM5 – Full GPS Pseudoranges, PhaseRanges, PhaseRangeRate and CNR
1076 MSM6 – Full GPS Pseudoranges, PhaseRanges and CNR (high resolution)
1077 MSM7 – Full GPS Pseudoranges, PhaseRanges, PhaseRangeRate and CNR (high resolution)
1084 MSM4 – Full GLONASS Pseudoranges and PhaseRanges plus CNR
1085 MSM5 – Full GLONASS Pseudoranges, PhaseRanges, PhaseRangeRate and CNR
1086 MSM6 – Full GLONASS Pseudoranges, PhaseRanges and CNR (high resolution)
1087 MSM7 – Full GLONASS Pseudoranges, PhaseRanges, PhaseRangeRate and CNR (high resolution)
1094 MSM4 – Full Galileo Pseudoranges and PhaseRanges plus CNR
1095 MSM5 – Full Galileo Pseudoranges, PhaseRanges, PhaseRangeRate and CNR
1096 MSM6 – Full Galileo Pseudoranges, PhaseRanges and CNR (high resolution)
1097 MSM7 – Full Galileo Pseudoranges, PhaseRanges, PhaseRangeRate and CNR (high resolution)
1124 MSM4 – Full BeiDou Pseudoranges and PhaseRanges plus CNR
1125 MSM5 – Full BeiDou Pseudoranges, PhaseRanges, PhaseRangeRate and CNR
1126 MSM6 – Full BeiDou Pseudoranges, PhaseRanges and CNR (high resolution)
1127 MSM7 – Full BeiDou Pseudoranges, PhaseRanges, PhaseRangeRate and CNR (high resolution)



Integration Tools

  • REST API
  • RabbitMQ

API Documentation

  • Swagger
