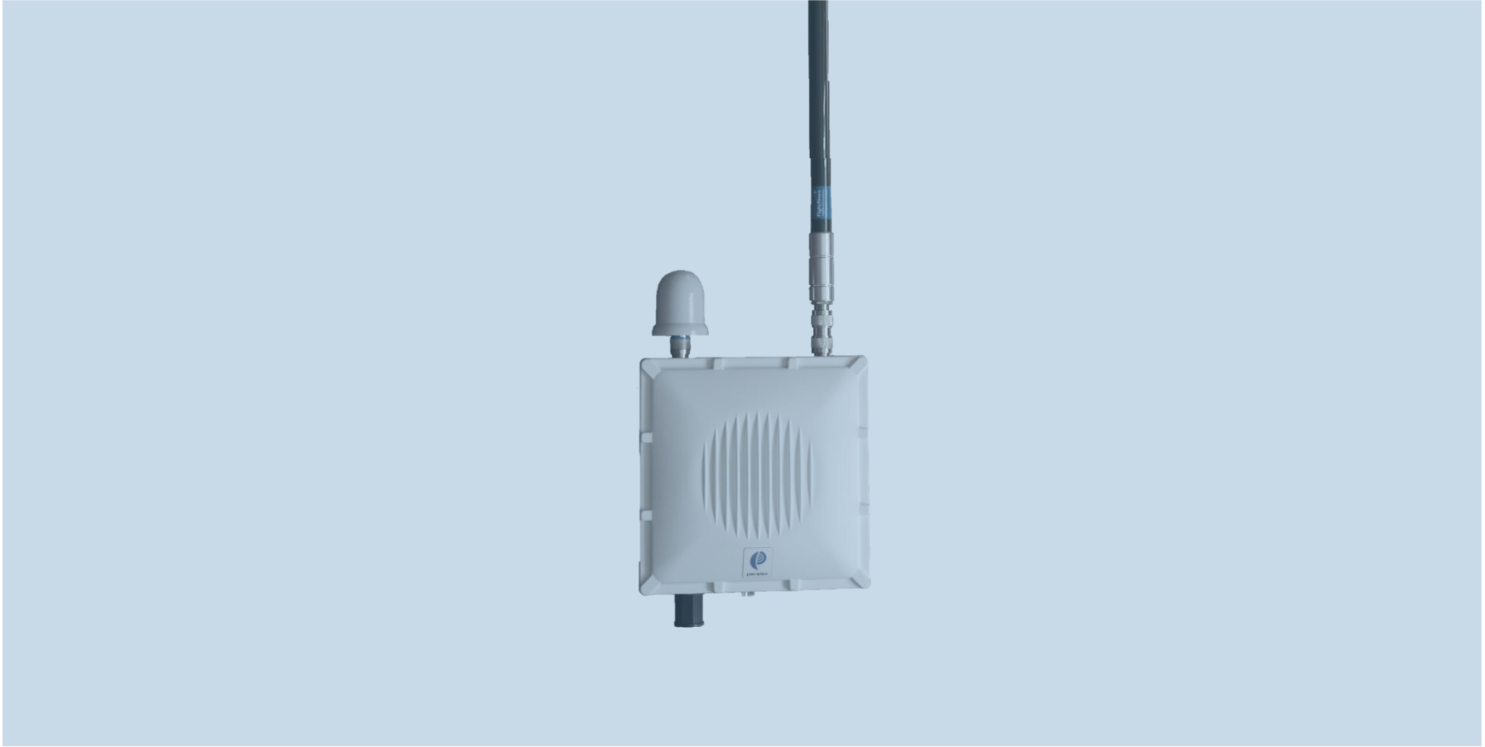

ESRX-1090 — ADS-B Receiver

ESRx-1090 is a robust, scalable, and easy to install ADS-B solution that can be used to track aircraft and other ADS-B enabled platforms such as drones and high-altitude balloons at long ranges.   ESRX-1090 (Extended Squitter Receiver) is a Mode A/C/S (1090 MHz) receiver capable of capturing detailed information from
cooperative aircraft. The receiver decodes Mode S and ADS-B protocols data from aircraft contains a host of useful information such as callsign, ICAO code, platform type, position, velocity, and much more. The information is fused in Peralex's powerful tracking server for reliable aircraft identification and tracking from any number of receivers.

Combine three or more ESRx-1090 receivers to harness the power of multilateration and protect against position spoofing or transponder failure.  Through accurate receiver timestamping, three or more receivers can be used to track aircraft by multilateration (MLAT). This added layer of localization and validation provides protection against transponder position spoofing and can be used to track aircraft with outdated transponders. This also allows aircraft with older Mode-S transponders to be tracked.

More details can be found in the ESRX-1090 datasheet.
