IP66 Rated Protective Box for Outdoor Use of GP-Probe TGE2 with Embedded Antenna System. Designed for Wall or Pole Mounting.

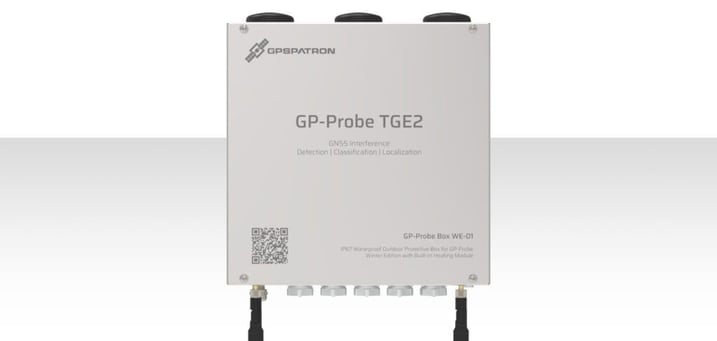

GP-Probe Box front
Available as a separate accessory.
- Three-channel antenna system
- Automatic heating module
- GP-Probe TGE2 can be easily installed
MOUNTING KIT
GP-Probe Box Mounting Features
The GP-Probe Box features a comprehensive mounting kit designed for secure attachment to both round and square poles, ensuring easy installation on a variety of surfaces.
KEY FEATURES
The enclosure is engineered to house and protect the GP-Probe TGE2 GNSS interference detector in demanding environments. It ensures reliable operation in extreme conditions, withstanding temperatures from -40°C to +50°C. Its user-friendly design allows for easy installation & de-installation of the detector. The comprehensive mounting kit enables secure mounting on various surfaces and walls, ensuring versatile deployment options.
Embedded Antenna System
The GP-Probe Box for TGE2 features a built-in three-channel antenna system, providing advanced detection of sophisticated coherent spoofing attacks through spatial signal processing.
IP66 Rated Protection
All external components, including antennas, connectors, and the enclosure itself, are engineered to meet IP66 standards, providing robust resistance against water and dust ingress.
Premium Stainless Steel Enclosure
The GP-Probe Box is constructed from high-grade stainless steel and equipped with military-grade connectors, providing exceptional durability and reliability.
Equipped with an advanced automatic heating module, the GP-Probe Box is capable of efficient operation in temperatures from -40°C to +50°C, ensuring reliable performance in extreme weather conditions.
Comprehensive Mounting Kit
The GP-Probe Box comes with a mounting bracket and a complete installation kit, including a pole clamp for secure attachment to round or square poles. This ensures compatibility with various surfaces and facilitates easy installation.
Effortless Installation of the GP-Probe TGE2
The enclosure is available as an optional accessory for the GP-Probe TGE2. Installation and removal of your detector are straightforward and can be accomplished with a single screwdriver in under 5 minutes.
SPECIFICATIONS
Mechanical
| Protection: | IP66, Waterproof, Crushproof, Dustproof, Corrosion-proof |
| Size: | 300 x 350 x 150 mm, without attached connectors |
| Weight: | 5.0 kg with GP-Probe TGE2 installed |
GNSS Antennas
| Radiation Pattern: | Omni |
| Frequency Ranges: | 1560 – 1610 MHz |
| VSWR: | 2.5:1 Typ. |
| LNA Gain: | 27 dB |
| NF: | 1.3 dB |
| Polarization: | RHCP |

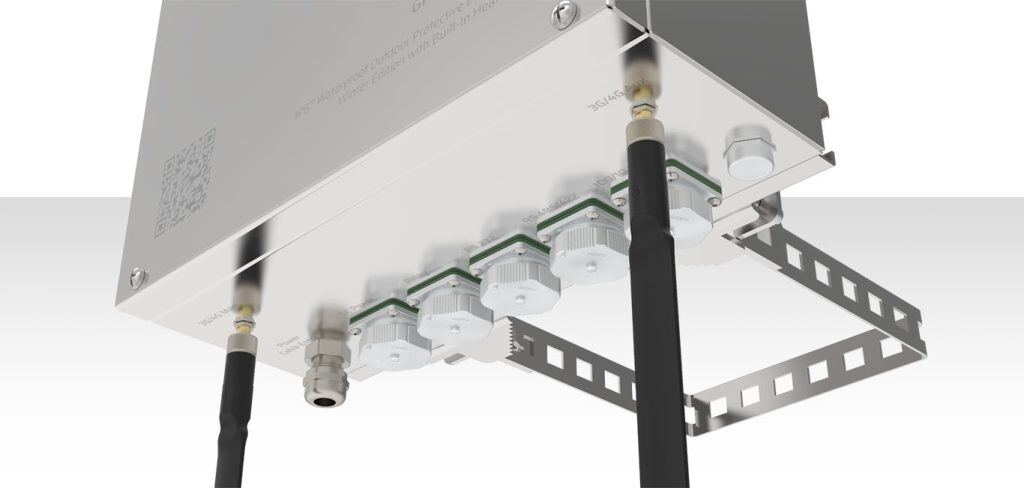

Connectors
| 4G Antennas: | Main, Aux. SMA(f) |
| AC Power: |
Cable gland. Nickel-plated Brass. Cable diameter: 4…8mm. IP68
|
| DC Power: | 3-pins. Electrical mounting: soldering. Cable diameter: 9…10.5mm. IP67 |
| Relay: | 4-pins. Electrical mounting: soldering. Cable diameter: 9…10.5mm. IP67 |
| LAN: | RJ45, IP67 |
| RS 232: | RJ45, IP67 |
| RS 485/422: | RJ45, IP67 |
Environmental
| Operational Temperature: | -40°C to +50°C |
| Storage Temperature: | -40°C ~ +70°C |
4G Antennas
| Type: | Multiband Swivel Dipole 617-3900MHz, SMA, IP65 |
| Frequency Ranges: |
617MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3.2GHz ~ 3.9GHz
|
| VSWR: | 3:1(Max) |
| Gain: | 1 / 2.5 / 3 dBi |
| Radiation pattern: | Omni pattern in H-plane |
| Polarization: | Linear vertical |
Warranty & Support
| Warranty: | 1 year Extended warranty is available |
| Support: | 1 year of complimentary technical support |
Package Content
| GP-Probe Box: | 1 pc. |
| 3G/4G antenna: | 2 pcs. |
| Connectors Kit: | 1 pc. The kit includes connectors for: DC power, relay, RS 232, RS 485/422, LAN |
| Manuals: | Quick start guide |
