IP66 Rated Protective Case for Outdoor use of GP-Probe TGE2. Built-in 36v 31.5Ah LiPo Battery

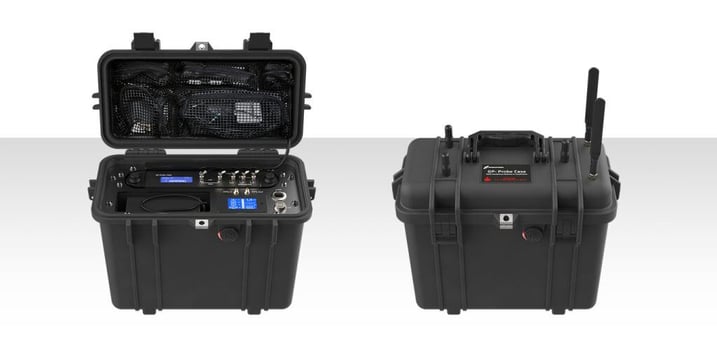

GP-Probe Case - Front View
Available as a separate accessory.
INTEGRATED ANTENNA SYSTEM
The GP-Probe Case comes with three GNSS antennas for coherent GNSS spoofing detection and two 4G antennas for streaming data to the GP-Cloud. The antennas are attached to SMA connectors, allowing for the possibility of connecting different antennas or using cable-extended antennas based on individual needs.
GP-PROBE SELF-INSTALLATION
The GP-Probe can be easily installed or removed with the use of a single screwdriver, typically taking no longer than 5 minutes to complete the process.
PROTECTIVE FEATURES

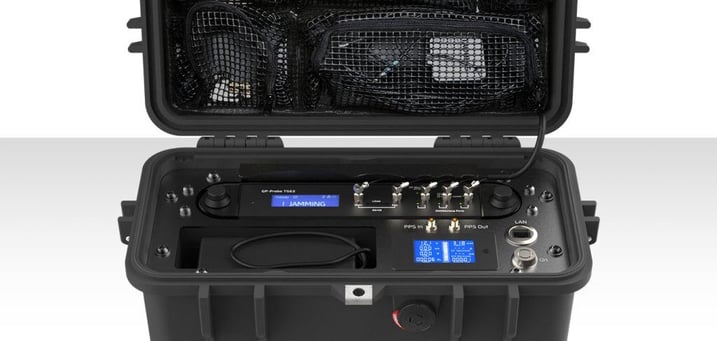

GP-Probe Case Open
- Shock/vibration-absorbing damper
- Shockproof foam
- LiPo battery pack
KEY FEATURES
With built-in 36v 31.5Ah LiPo batteries, you can be sure that your GP-Probe TGE2 will stay powered and operational for up to 7 days no matter where you take it, in all weather conditions.
7-Day Battery Life
The built-in high-capacity LiPo battery pack, combined with a discharge controller, allows the GP-Probe to operate for up to seven days in normal temperature conditions and up to five days in extreme low temperatures on a single charge.
Water and Dust Protection
All external components, including antennas, connectors, and the case itself, are designed and rated for IP66 protection, ensuring resistance against water and dust.
Vibration and Shock Protection
GP-Probe is mounted on a shock- and vibration-absorbing damper. The entire case is filled with shockproof foam.
Wide Operational Temperature Range
Custom LiPo batteries and a heating system enable the GP-Probe Case to operate efficiently at temperatures ranging from -20 to +40 degrees Celsius.
All-in-One Package
The GP-Probe Case is supplied with a complete delivery set (but does not include GP-Probe TGE2). You can start using the Case as soon as you receive it and install the GP-Probe.
Easy GP-Probe Installation
You can easily install and remove the GP-Probe using just one screwdriver in 5 minutes or less.
SPECIFICATIONS
Mechanical
| Protection: | IP66, Waterproof, Crushproof, Dustproof, Corrosion-proof |
| Size: | 430 x 244 x 341 mm, without connected antennas |
| Weight: | 9.0 kg with GP-Probe TGE2 installed 7.5 kg without GP-Probe TGE2 |
LiPo Battery
10S9P LiPo battery, 36V, 31.5Ah
Enables 7 days of GP-Probe TGE2 operation
Power Adapter
| Input Voltage: | 100-240V 50/60HZ |
| Output Voltage: | 42V |
| Output current: | 3A |
| Output power: | 150W |
| Size: | 135*55*45mm |
GNSS Antennas
| Type: | Helical |
| Frequency Ranges: | GPS L1/L2
GLONASS L1/L2 GALILEO E1/E5b BDS B1/B2/B3 |
| VSWR: | 2.5:1 Typ. |
| LNA: | 32 dB |
| NF: | <2 dB |
| Polarization: | Right-hand circular |
4G Antennas
| Type: | Multiband Swivel Dipole 617-3900MHz, SMA, IP65 |
| Frequency Ranges: |
617MHz ~ 960MHz, 1.4GHz ~ 2.7GHz, 3.2GHz ~ 3.9GHz
|
| VSWR: | 3:1(Max) |
| Gain: | 1 / 2.5 / 3 dBi |
| Radiation pattern: | Omni pattern in H-plane |
| Polarization: | Linear vertical |
PPS Input/Output
| Connector: | SMA(F) |
I/O Connections
| Network Interface: | 10/100BASE-T RJ45, 15KV ESD protection |
Environmental
| Operational Temperature: | -20°C to +40°C Avoid direct sunlight |
| Storage Temperature: | -10°C ~ +60°C |
Warranty & Support
| Warranty: | 1 year Extended warranty is available |
| Support: | 1 year of complimentary technical support |
Package Content
| GP-Probe Case: | 1 pc. |
| GNSS antenna: | 3 pcs. |
| 3G/4G antenna: | 2 pcs. |
| Manuals: | Quick start guide |
| Power adapter: | 1 pc. 1.7 m IEC power lead |
