What are Switched Beam Antennas?

by David A Moschella on June 23, 2021
Find me on:

Getting RF power or reach where you need it is a common challenge of radio systems. Switched Beam Antennas (SBA) can provide fast steering and high gain along with reduced size, weight & power for line-of-sight communications, as an alternative to complex, mechanically-pointed antennas and expensive phased-array antennas.

Read on to see if you should switch to the superior beams of SBAs.

Switched Beam Antenna Background

There are many reasons why transmitting or receiving in all directions is undesirable. A variety of ways to achieve directionality exist, generally, by concentrating the radiation pattern into a beam. Furthermore, there are several ways to point a beam. So let's unravel the subject by starting with types directional antennas.

Directional Antenna Types

To achieve directionality, multiple elements and/or an aperture are required.

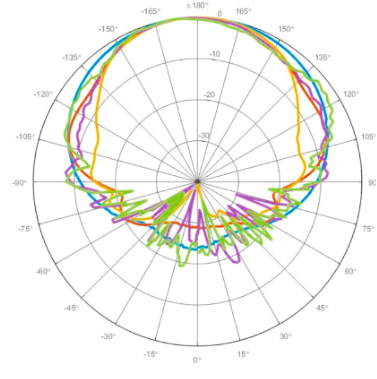

A log periodic dipole array, and analogous Yagi-Uda array antennas, produce directional beams using appropriately-sized dipole elements spaced on a boom. A vertically polarized LPDA's azimuthal radiation pattern looks like this (for several frequencies of operation):

LPDA azimuthal patterns 7-10 dBiDish and reflect-array antennas make a directional beam by reflection of the radiation from a single element, by a many-wavelength dish or grid. Their beams can be very narrow and tens of dB in gain.

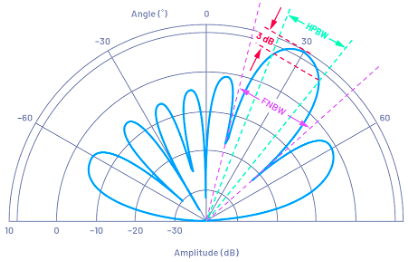

Phased-array antennas make directional beams by combining signals from a grid of elements spaced about 1/2 wavelength apart. Here's an example radiation pattern of a beam pointed by a phased array, from an excellent article by Analog Devices:

Phased array radiation pattern

No matter how you do it, beams rule in modern radio and radar systems.

Switched Beam Antennas

There's another type of directive antenna from our partner COJOT -- as introduced in this video. Switched beam antennas contain twenty or more directional antennas that can be "switched" by serial or ethernet command. These elements have the ability to form several types of pre-set beam patterns, pointing all around the antenna.

An internal microcontroller makes it possible to switch directions and/or beams in just microseconds.

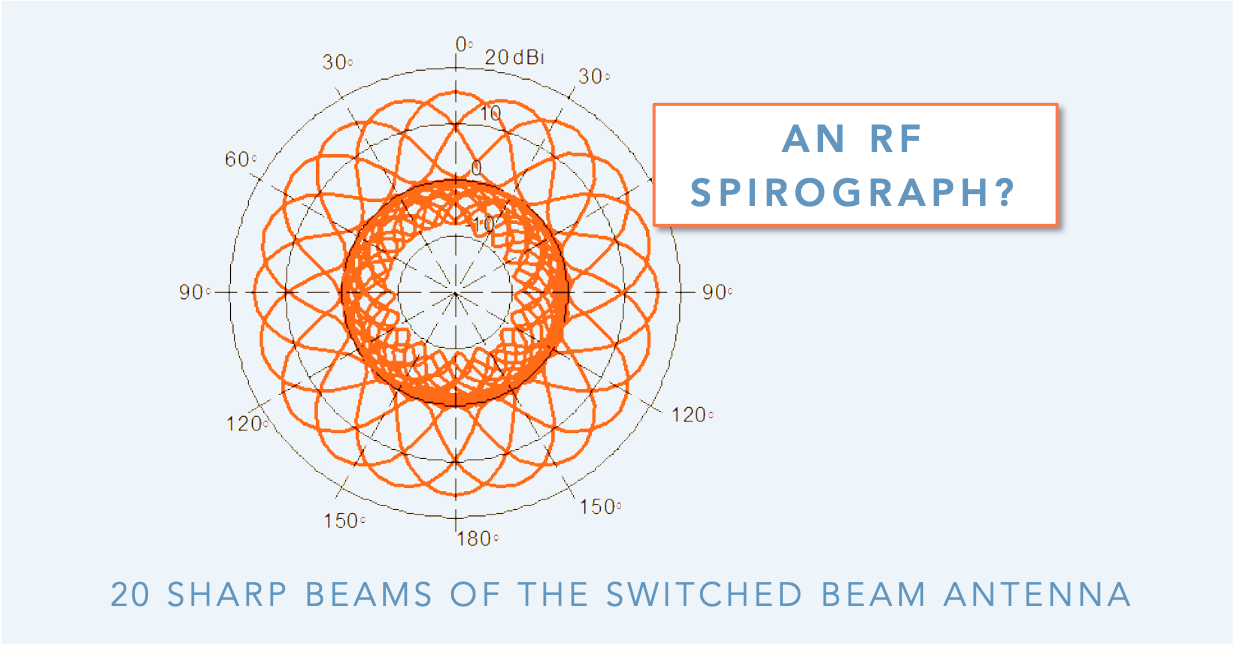

Switched Beam Antenna Spirograph

As seen in the graphic above, sharp azimuthal beams can cover an entire 360 degrees with little variation of max power.

Several types of SBA antennas are available covering bands from 1350-2700 MHz3400-3800 MHz, as well as WiFi 2.45 & 5.8 GHz bands. There are also Dual-polarization and High power-handling switched beam antennas for MIMO-communications.

Benefits of Switched Beam Antennas

Although switched beam antennas don't provide the precise beam steering capability of a phased array, they provide greater azimuthal beam coverage - indeed SBAs can cover a full 360 degrees.

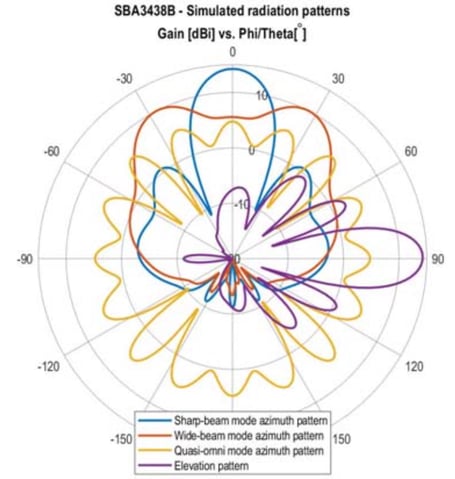

Also, SBAs easily provide a variety of beam types, as seen in the graphic below, such as Sharp, Wide and Quasi-omni azimuthal beams (along with the common-to-all Elevation pattern).

More on these and other SBA beams in this blog post.

SBA3438B Simultated Radiation Patterns dBi

Switched Beam Vs Omni Antennas

SBAs increase range and coverage versus omni antennas, thus providing increased capacity, improved link reliability, and increased spectral efficiency for communications and EW applications.

View our selection of Switched Beam antennas. If you don't see exactly what you want, L, S and C band variants are possible.

Contact Cyntony for your specific frequency, polarization and power-handling needs.
