Communicate like a pro, so Boris doesn't know: with directional antennas!

by David A Moschella on April 3, 2019
Find me on:

Recently, I heard an unfamiliar term: spectrum camouflage, or maybe it was EM camouflage—no matter, it's intriguing. There's growing awareness that for all our great military technology, enabled by net-centric warfare, an unintended consequence is deep reliance on assured use of the electromagnetic spectrum.

Electronic Communication Warfare

Our peers and foes recognize this and have invested heavily in electronic warfare against tactical communications, navigation and timing, civilian networks etc. The Russians demonstrate this fearful capability in hot-spots like Ukraine and Syria.

Directional CTA

Spectrum Camouflage

Reducing susceptibility to signals intelligence and electronic attack by the enemy, i.e. spectrum camouflage, is a worthy and difficult endeavor. One aspect for consideration is electromagnetic signature management; that is, controlling emissions as a function of frequency of operation, transmit power levels, and the shape of directional antenna radiation patterns.

Legacy tactical communications systems offer little in the way of signature management. SATCOM is much better owing to their necessarily directional antennas, but let's keep this discussion about mounted and dismounted tactical communications in VHF and UHF frequencies.

Antennas for tactical comms are mostly omnidirectional, sending signals in all azimuths equally with ample power for high signal-to-noise ratios. Adjusting power levels is easy, but reducing power to control unintended emission can too severely degrade necessary communications when using omni antennas.

Directional over Omnidirectional

So let's take a look at altering radiation patterns by employing directional antennas in place of omnidirectional ones.

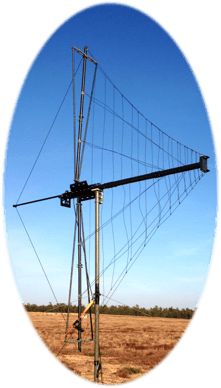

LPDA-A0097 at jump circle.pngThis lightweight, portable wire-element log periodic dipole antenna, LPDA-A0097 has a 30-500 MHz frequency range with directional gain up to 6 dBi, and front-to-back ratio from a few to 25 deciBels (dB).

Setting up the antenna takes only a minute; it is simply a matter of unfolding the arms and bowtie then deploying the 'stinger' at the back, which tensions the log-periodic dipole array antenna (LPDA) wire element catenaries.

The LPDA-A0097 is a 11.6 x 6.2 x 1.4 foot antenna when deployed, and weighs only 25 pounds. It is easy to attach a mast to raise it above the ground and includes a rotating bracket to change polarization without lowering the mast.

Directional Antenna Benefits

Compared to a wideband V/UHF whip antenna on a vehicle, for most frequencies, this LPDA antenna would deliver at least ten times more power in the favored direction.

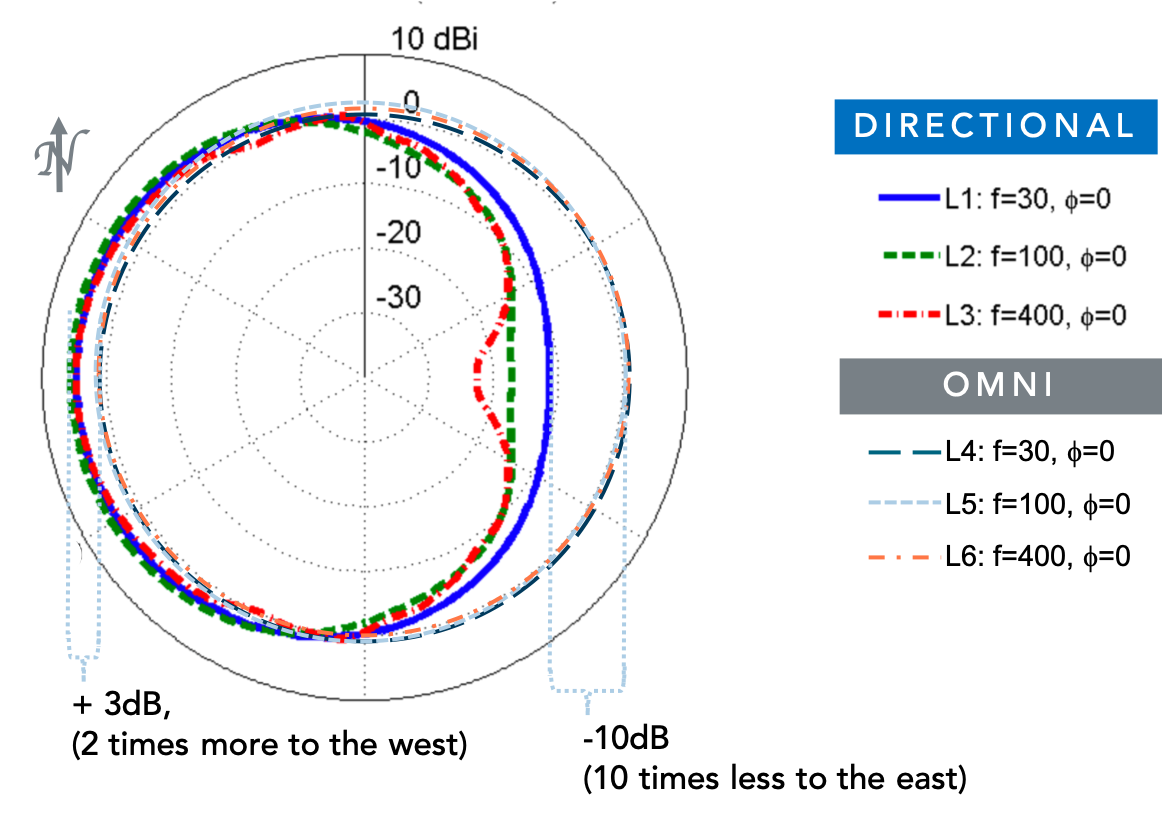

The diagram below illustrates the differences of omnidirectional and directional antenna azimuthal power patterns at the horizon (zero degrees elevation).

Directional versus Omnidirectional Radiation Patterns

You can clearly see the benefit of directional antennas in tactical situations, assuming your friends and foes are in generally opposite directions. Notice in the illustration how an LPDA covers a wide arc with power levels at or above a dipole (0 dBi), from north to south, and as much as 3 dB more to the west. While in the eastern direction, radiated power is significantly diminished, from several to tens of dB (remember -20dB equals 0.01, or 1/100).

For Boris in the East, he'll be much less able to hear and locate an emitter with a directional antenna as above.  Signature management in action.

Vehicle-Mounted Solution

This is cool, but what if you want to have a directional vertically polarized antenna covering the same V/UHF frequency on a vehicle? The 12 foot tall LPDA-A0097 is probably too tall.

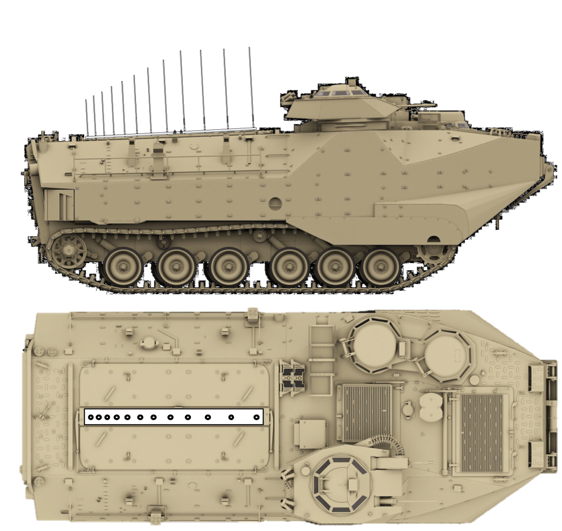

But there's another directional antenna that may work: a log periodic monopole array, which is half as high. Notionally, such an antenna on the USMC Assault Amphibious Vehicle (AAV) could look something like this:

AAV with LPMA top and side view

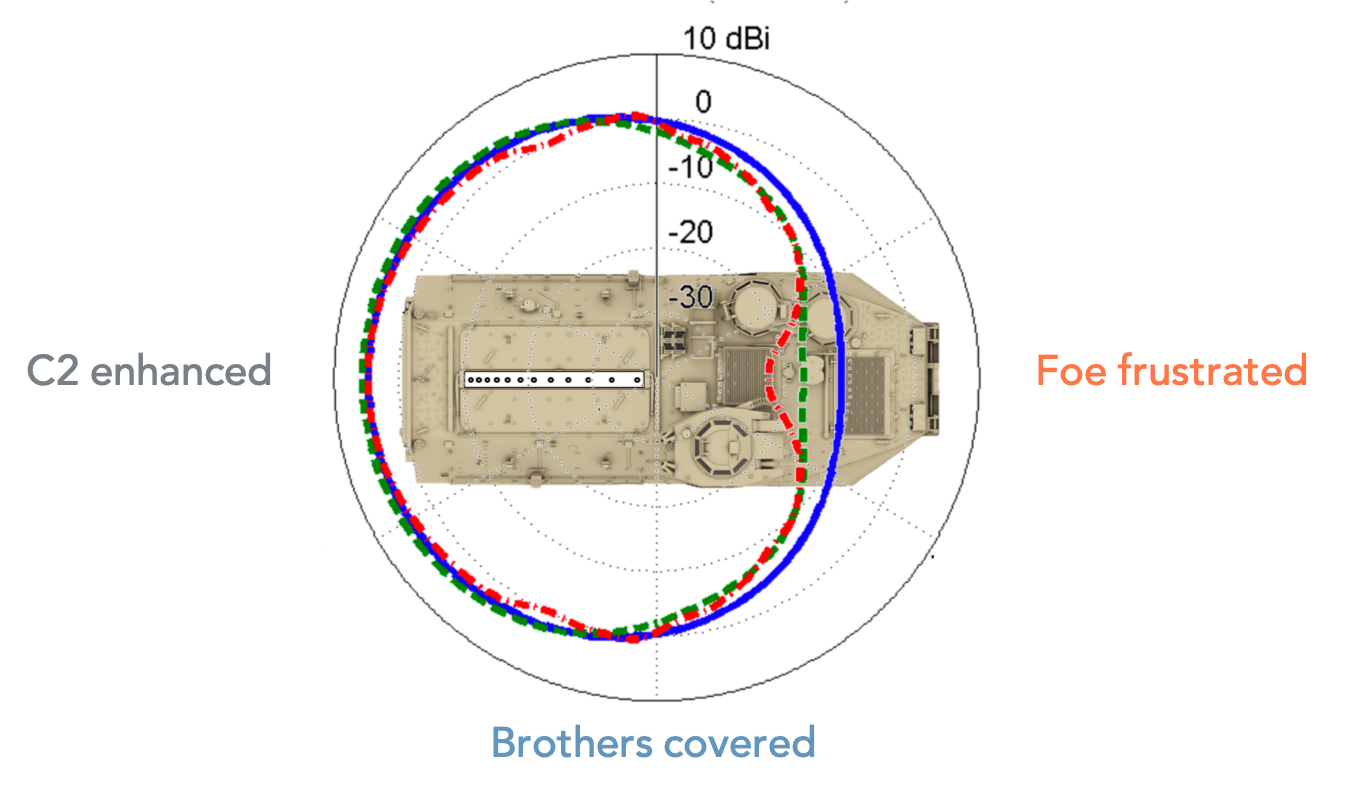

Its radiation pattern would be advantageous to its assault mission, outputting less power in the direction of attack,  directing communications towards the rear command and control elements while covering local tactical team members:

AAV with LPMA radiation pattern





Although the directionality of the radiation pattern is fixed to the vehicle, the AAV has tracks, so it can easily reorient itself should the need arise to point its rear-end to the desired bearing. After all, YAT-YAS applies.

For all the great electromagnetic signature management an LPMA would give to an AAV, the best reason to equip this bad-ass machine with one is what results:

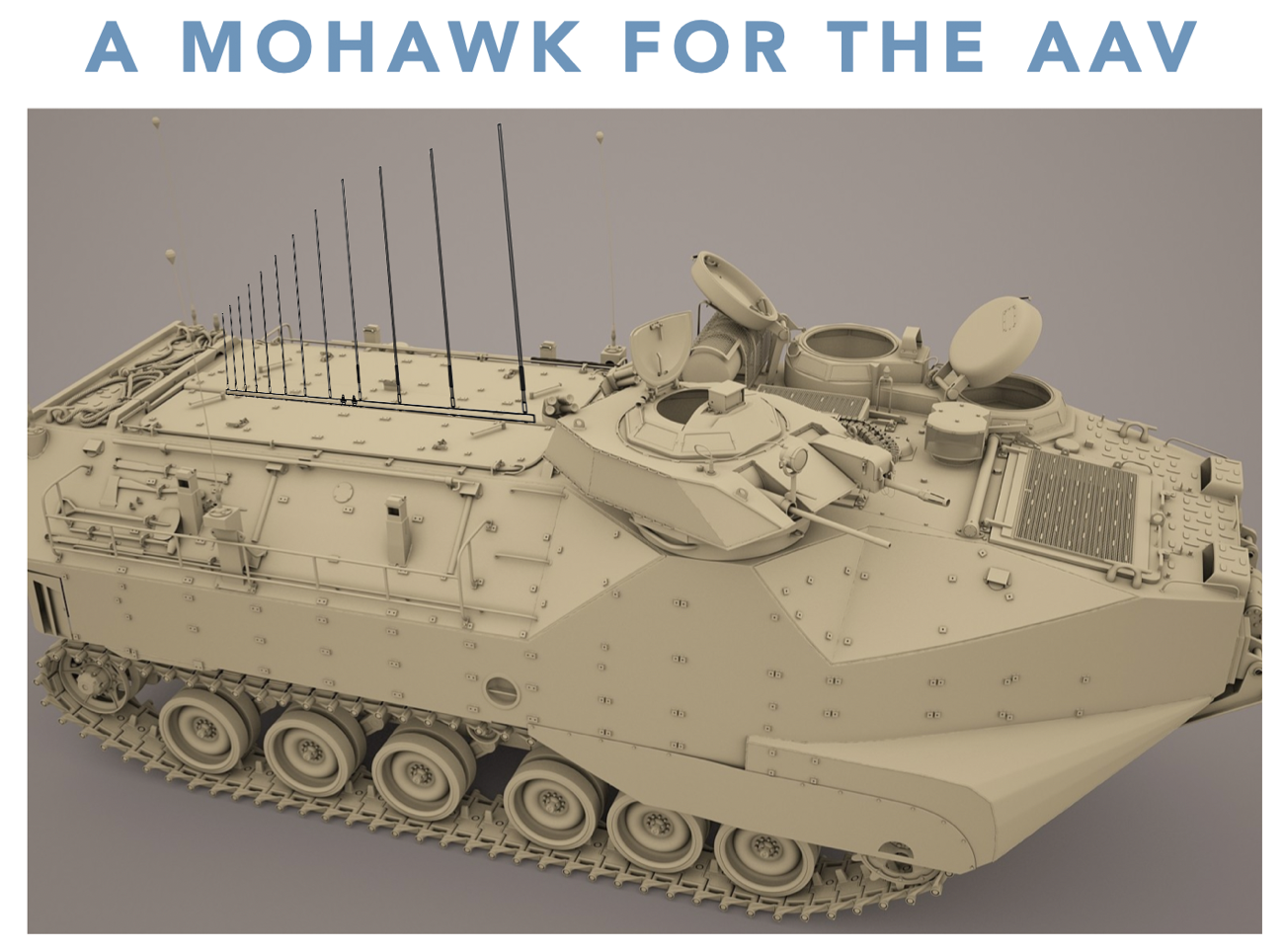

AAV LPMA Mohawk

I think this could give the First Wave an edge, and piss off Boris, don't you think?
